8. Signal Data Model¶

8.1 Arrays and columns¶

In mass spectrometry it is common to speak of a spectrum having an m/z array, as a synonym for having been measured in the m/z dimension, with a parallel intensity array giving the abundance of the signal at each m/z. In mzML, the two dimensions may even use different physical data types on different spectra in the same file, and there are legitimate use-cases for that.

mzPeak can store array data in two ways:

• As a column in a signal data layout — the array is burned into the schema and registered in the 8.2 array index. It is encoded directly by Parquet, subject to Parquet's adaptive encoding and compression, and — crucially — can be searched and sliced via the page index.
• As an auxiliary array — stored in the associated metadata table's *.auxiliary_arrays value for that entity's row. Auxiliary arrays can be individually configured by the writer (custom compression, data type, decoding, or cvParams), but they cannot be searched or sliced without decoding the entire array, just as in mzML.

Currently, the first sorted array is assumed to be the axis around which all other values are arranged — sorting rank 0. Any arrays that are shorter or longer than this axis SHOULD be stored as auxiliary arrays instead.

8.2 The Array Index¶

To annotate what kind of array a column is, mzPeak stores a JSON-serialized array index in the Parquet key–value metadata. It is a list of structures describing each array using controlled vocabulary. A column is part of the Parquet schema and must always exist with a homogeneous value type (or be null) for each row.

The array index is stored in the Parquet metadata of the data_arrays or peaks files under <entity_type>_array_index — e.g. spectrum_array_index for spectra or chromatogram_array_index for chromatograms, and wavelength_spectrum for UV-viz wavelength spectra. The same key name construction is used for all signal data layouts regardless of data_kind.

{
  "prefix": "point",
  "entries": [
    {
      "context": "spectrum",          // This array describes a spectrum
      "path": "point.mz",             // Column path in the Parquet schema
      "data_type": "MS:1000523",      // CV term for the data type of this array
      "array_type": "MS:1000514",     // CV term for the array itself
      "array_name": "m/z array",      // Human-readable name; also where a custom
                                      //   `non-standard array` name is stored
      "unit": "MS:1000040",           // Values are in m/z
      "buffer_format": "point",       // This column uses the point layout
      "transform": null,              // No transformation applied
      "data_processing_id": null,     // Use the default data-processing method
      "buffer_priority": "primary",   // Default column for m/z queries
      "sorting_rank": 0               // Sorted within entries; other arrays sort after
    },
    {
      "context": "spectrum",
      "path": "point.intensity",
      "data_type": "MS:1000521",
      "array_type": "MS:1000515",
      "array_name": "intensity array",
      "unit": "MS:1000131",           // Detector counts
      "buffer_format": "point",
      "transform": null,
      "data_processing_id": null,
      "buffer_priority": "primary",
      "sorting_rank": null            // Imposes no sorting order on the data
    }
  ]
}

This array index describes the table shown for the point layout. It is governed by the JSON Schema schema/array_index.json.

8.2.1 Buffer format¶

Depending on the signal data layout in use, arrays are stored in different formats. The available buffer_format values are:

The chunked layout currently supports a single chunking dimension. A file in the chunked layout MUST include a chunk_start, chunk_end, chunk_encoding, and chunk_values column exactly once each. This applies even if the chunk_values column is empty due to an opaque transform like MS-Numpress linear encoding being applied. The array index entries for the chunk_start, chunk_end, and chunk_encoding copy all fields from chunk_values except path, transform and buffer_format.

8.2.2 Buffer priority and naming¶

In Parquet, all column names and types must be known before writing, and no two columns may share the same name and path. Normally there is one coordinate column (e.g. m/z or time) and one intensity column. If there are intensity arrays with different units or data types, they must be defined as separate arrays in the array index and therefore have distinct names. While uncommon for spectra, this is unavoidable for diagnostic traces stored as chromatograms.

For ergonomics, common columns should have simple, consistent names — this makes files easier to use from raw Parquet tooling. The most common version of each array type (as defined by the implementation) SHOULD have a buffer_priority of primary and receive a short, consistent name. The recommended short names:

8.3 Data arrays, encoding, transformations, and Parquet¶

Parquet can write page indices on any leaf column, based on the value being stored before its encoding and compression. This means a transformation that obscures the stored value from the page index also disables predicate filtering on it. The techniques below are written in terms of spectra but apply more broadly.

8.3.1 Numerical precision¶

There are no strict rules about which physical data types must be used for particular data arrays. Similar logic to that described in the metadata tables section should be applied here. For instance, that m/z arrays may be 32-bit floats or 64-bit doubles at the discretion of the writer. Some instrument vendors do not even export 64-bit precision values, defeating the purpose of storing them at 64-bit precision. If you use delta encoding, 64-bit doubles SHOULD still be used for accurate reconstruction. Likewise, intensity arrays may be 32-bit float, 64-bit double, or even 32-bit integers. The writer SHOULD choose how to most compactly store their data. Since all data are stored in Parquet, all physical values are stored according to their encoding as described in here, which is little endian in all cases.

Opting for lossy compression like MS-Numpress carries its own precision costs. See (4) for more details.

8.3.2 Zero run stripping¶

Some vendors produce profile arrays with large "empty" regions of zero-intensity points along a semi-regular m/z axis. These regions hold little information, so all but the first and last zero-intensity points of a run are removed. This is only meaningful for profile data. Readers SHOULD assume that zero runs have been stripped. Writers MAY strip zero runs, it is recommended but not required. Zero run stripping is not marked by a transform term. Most run formats do not store zero runs and might only produce them at read time if requested. Readers are NOT required to do so, though they may use either the coordinate spacing model stored in [polynomial_delta_coordinate_interpolation] derived in the 8.3.3 Null marking section or the grid model if the grid encoding is provided in the chunked layout.

A zero run is a sequence of three or more zero values, reduced to just its first and last positions. Zero runs can be very long and, outside of scenarios that assume a complete coordinate grid, provide no value. If a zero run needs to be reconstructed beyond the flanking points, the same method used for filling 8.3.3 null-marked values can extend the run.

def find_where_not_zero_run(data: Sequence[Number]) -> Sequence[int]:
    """
    Construct a list of positions that are not part of a zero run.

    A zero run is any position *i* such that:
      1. ``x[i] == 0``
      2. ``(i == 0) or (x[i - 1] == 0)``
      3. ``(i == (len(x) - 1)) or (x[i + 1] == 0)``

    We build a position list because we need to extract these positions
    from ALL dimension arrays for this entity, not just the current array.
    """
    n = len(data)
    n1 = n - 1
    was_zero = False
    acc = []
    i = 0
    while i < n:
        v = data[i]
        if v is not None:
            if v == 0:
                if (was_zero or (len(acc) == 0)) and ((i < n1 and data[i + 1] == 0) or i == n1):
                    pass
                else:
                    acc.append(i)
                was_zero = True
            else:
                acc.append(i)
                was_zero = False
        else:
            acc.append(i)
            was_zero = False
        i += 1
    return np.array(acc, dtype=np.uintp)

8.3.3 Null marking¶

For spectra with many small gaps, even zero-run stripping leaves too much unhelpful information. Instead, we can replace the flanking zero-intensity points with null m/z and intensity values; Parquet then skips storing the expensive 32- and/or 64-bit values, retaining only the validity-bitmap bit. Separately, we fit a simple m/z-spacing model by weighted least squares of the form:

import numpy as np
from numpy import typing as npt
from scipy.linalg import solve_triangular

class DeltaCurveRegressionModel:
    beta: npt.NDArray

    def __init__(self, beta: npt.NDArray):
        self.beta = beta

    @classmethod
    def fit(cls, mz_array: npt.NDArray, delta_array: npt.NDArray, weights: npt.NDArray | None = None, rank: int=2):
        if weights is None:
            weights = np.ones(len(mz_array))

        raw = mz_array[1:]
        w = weights[1:]
        y = delta_array

        # Build the design matrix
        data = [np.ones_like(raw)]
        for i in range(1, rank + 1):
            data.append(raw**i)
        data = np.stack(data, axis=-1)

        # Use the QR decomposition to solve the weighted least-squares problem
        # to estimate weights predicting δ m/z.
        # https://stats.stackexchange.com/a/490782/59613
        chol_w = np.sqrt(w)
        qr = np.linalg.qr(chol_w[:, None] * data)
        v = qr.Q.T.dot(chol_w * y)
        beta = solve_triangular(qr.R, v)

        # Numerically equivalent to and more stable than the direct inversion
        # beta = np.linalg.inv((data.T * w).dot(data)).dot(data.T * w).dot(y)
        return cls(beta)

    def predict(self, mz: float) -> float:
        acc = self.beta[0]
        for i in range(1, len(self.beta)):
            acc += self.beta[i] * mz ** i
        return acc

When reading null-marked data, use either the local second-median \(\delta mz\) or the learned model for that spectrum to compute the m/z spacing for singleton points, achieving a very accurate reconstruction. Because the non-zero m/z points are unchanged, a peak's apex or centroid is unaffected. If a peak is composed of only three points — including the two zero-intensity flanks — no meaningful peak model can be fit anyway, so the minuscule angle change is effectively lossless.

The model parameters learned for each entry MUST be stored in that entry's row in the associated metadata table, as polynomial_delta_coordinate_interpolation.

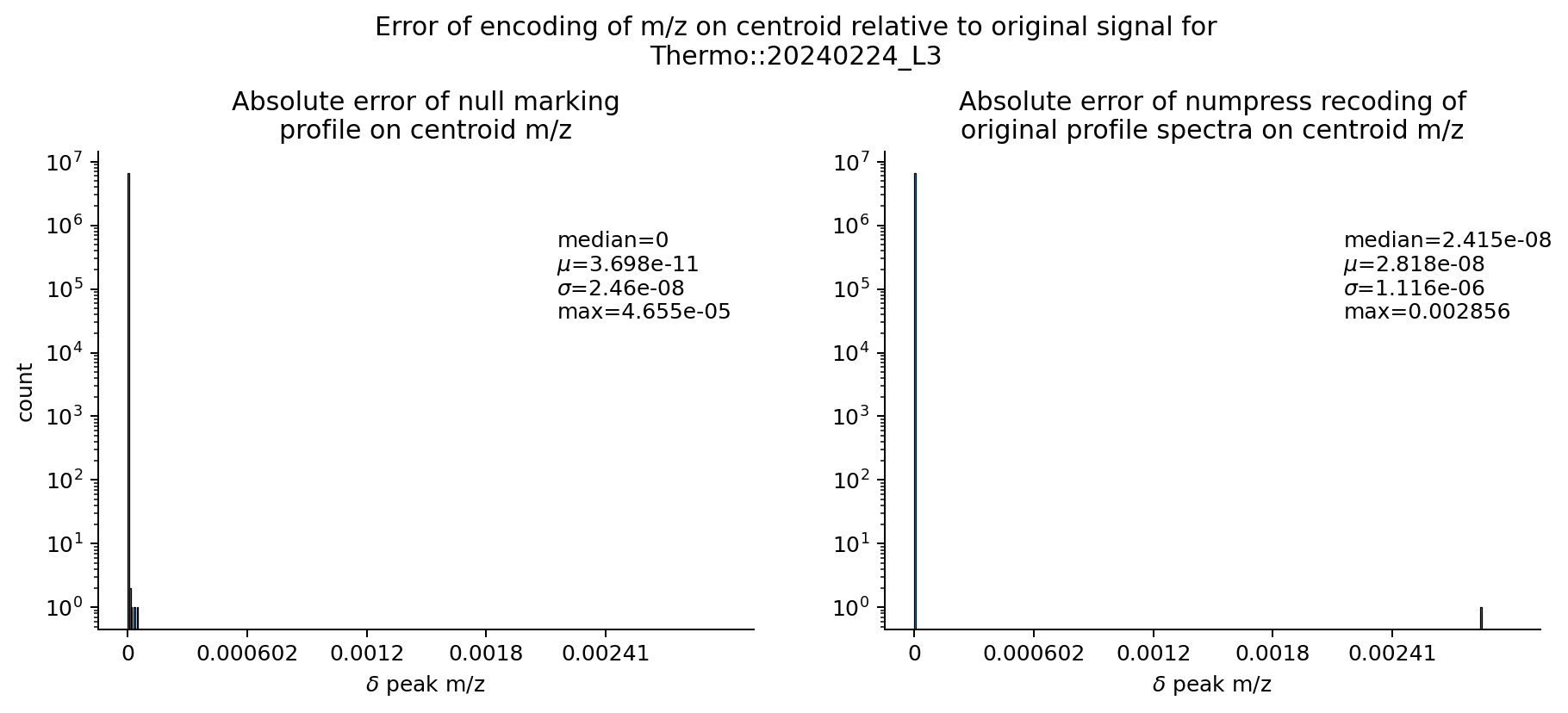

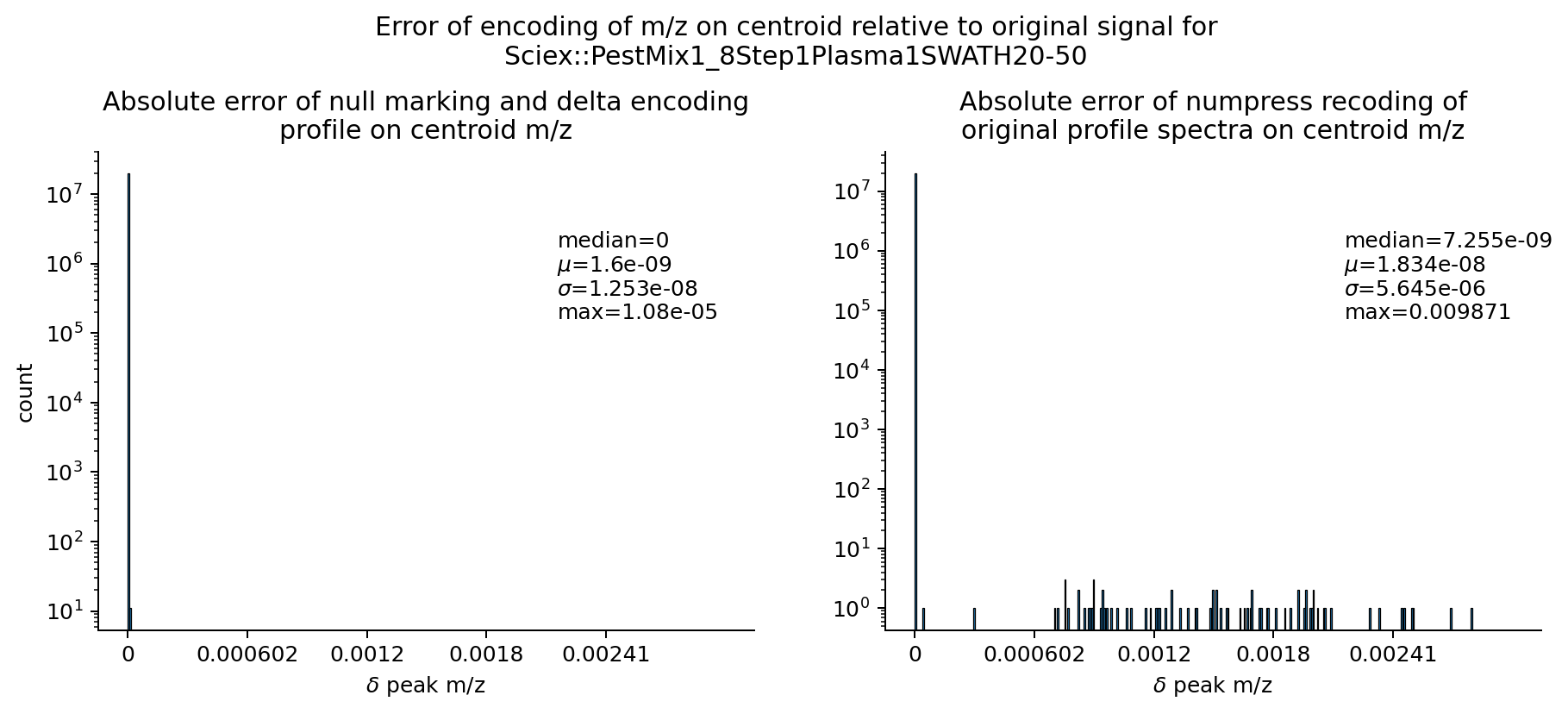

All MS-Numpress compression methods remain available and still give superior size reduction, at the cost of slightly larger accuracy loss. Using Numpress is a transformation and requires the chunked layout.

8.3.3.1 Finding flanking zero pairs¶

Zero-intensity points on the flanks of peaks still cost non-trivial storage in sparse datasets. This step matches only the zero-intensity points that occur on the flanks of profile peaks — not all zero-intensity points. Once found, these indices construct the null mask (the Arrow "validity bitmap"), which is equivalent to how a Parquet column chunk would represent them.

from collections.abc import Sequence
from numbers import Number
import numpy as np
from numpy import typing as npt

def is_zero_pair_mask(data: Sequence[Number]) -> "np.typing.NDArray[np.bool_]":
    '''Create a boolean mask for positions composed of two zeroes in a row.'''
    n = len(data)
    n1 = n - 1
    was_zero = False
    acc = []
    for i, v in enumerate(data):
        if v == 0:
            if was_zero or (i < n1 and data[i + 1] == 0):
                acc.append(True)
            else:
                acc.append(False)
            was_zero = True
        else:
            acc.append(False)
            was_zero = False
    return np.array(acc)

8.3.3.2 Decoding null pairs¶

Decoding null pairs — undoing null marking — means finding regions bounded by two nulls (or by the start of the array and a null, or a null and the end of the array), then filling the null values with either a locally estimated value (when more than one value is available to estimate the median delta) or the regression model described above (for a single point).

Unpaired null values MAY appear only as the first or last null value in array; any other unpaired null is an unrecoverable error. A run of three or more null values MAY be recoverable but should not occur under normal operation. When using the chunked layout this applies to each chunk's value array as well, making each chunk independently decodable.

The locally estimated value SHOULD be the second median of the spacing of the current segment's non-null values. The regression model predicts the spacing from the single non-null value of a segment that has only one.

from collections.abc import Sequence
from numbers import Number
import numpy as np
from numpy import typing as npt
import pyarrow as pa

def find_pairs(mask: Sequence[bool]) -> Sequence[int]:
    """
    Construct index ranges between pairs of ``True`` values in ``mask``.

    The first and last ranges include the start and end of the array even if
    the mask does not begin/end with a ``True``. The result has two columns:
    the start and end indices of each span between two ``True`` values (or the
    array termini).

    .. warning::
      This can fail or produce incorrect output if there are runs of ``True``
      values longer than 2. Buffer all data for an entry before calling this
      so that batches do not artificially disrupt pairs.
    """
    parts = []
    indices = np.where(mask)[0]
    if len(indices) == 0:
        return np.array([[0, len(mask)]])
    if indices[0] != 0:
        parts.append([0])
    parts.append(indices)
    if indices[-1] != len(mask) - 1:
        parts.append([len(mask) - 1])
    indices = np.concat(parts)
    indices = indices.reshape((-1, 2))
    indices[:, 1] += 1
    return indices


def estimate_median_delta(data: Sequence[Number]) -> tuple[Number, npt.NDArray]:
    """Find the 2nd median of ``np.diff(data)`` — a crude spacing estimate."""
    deltas = np.diff(data)
    median = np.median(deltas)
    deltas_below = deltas[deltas <= median]
    median = np.median(deltas_below)
    return median, deltas_below


def fill_nulls(data: pa.Array, common_spacing: DeltaCurveRegressionModel) -> npt.NDArray:
    """Fill ``null`` values using ``common_spacing`` or a locally estimated median delta."""
    pair_indices = find_pairs(data.is_null())

    chunks = []
    for (start, end) in pair_indices:
        chunk = np.asarray(data.slice(start, end - start))
        n = len(chunk)
        has_real = chunk[~np.isnan(chunk)]
        n_has_real = len(has_real)
        if n_has_real == 1:
            # A singleton point with one or two sides to pad
            if n == 2:
                if np.isnan(chunk[0]):
                    chunk[0] = chunk[1] - common_spacing.predict(chunk[1])
                else:
                    chunk[1] = chunk[0] + common_spacing.predict(chunk[0])
            elif n == 3:
                dx = common_spacing.predict(chunk[1])
                chunk[0] = chunk[1] - dx
                chunk[2] = chunk[1] + dx
            else:
                raise Exception(f'Invalid singleton chunk: {chunk}')
        else:
            # A run of values — estimate a more accurate delta from the data
            dx, _ = estimate_median_delta(has_real)
            if np.isnan(chunk[0]):
                chunk[0] = chunk[1] - dx
            if np.isnan(chunk[-1]):
                chunk[-1] = chunk[-2] + dx
        chunks.append(chunk)
    return np.concat(chunks)

8.3.4 Null semantics for signal data¶

Unless otherwise noted, readers SHOULD treat null values in the sorting- rank-0 array of an entry as governed by this model, with parallel null values in any intensity arrays read as 0. The sorting array, e.g. m/z array, should carry a transform of MS:1003902|zero intensity point trimming interpolation and the intensity array should carry a transform of MS:1003901|zero intensity point trimming. All other values at those points are read as-is, with null semantics meaning the value was absent. Writers using null marking SHOULD use null only for the first sorting dimension and its associated intensity value; all other columns should be written as-is.

8.4 Zero Stripping Null Marking Encoding Quick Reference¶

8.5 Null Marking Decoding Quick Reference¶
