10. Chunked Layout¶

The chunked layout treats one array — which must be sorted — as the "main" axis, cutting it into chunks of a fixed size along that coordinate space (for example steps of 50 m/z) and taking the same segments from the parallel arrays. The main axis chunks' start, end, and a repeated index are recorded as columns; each array may then be stored as-is or with an opaque transform (delta encoding, Numpress, …). The start/end interval permits granular random access along both the main axis and the source index. The top-level schema node is named chunk, and the entity index column MUST be its first column.

This example uses delta encoding for the m/z chunk values, which is reconstructed with very high precision for 64-bit floats. The m/z values inside mz_chunk_values are not visible to the page index, but the _chunk_start and _chunk_end columns are. The chunk values remain subject to Parquet encodings, so they can be byte-shuffled for further compression.

10.1 Column naming rules¶

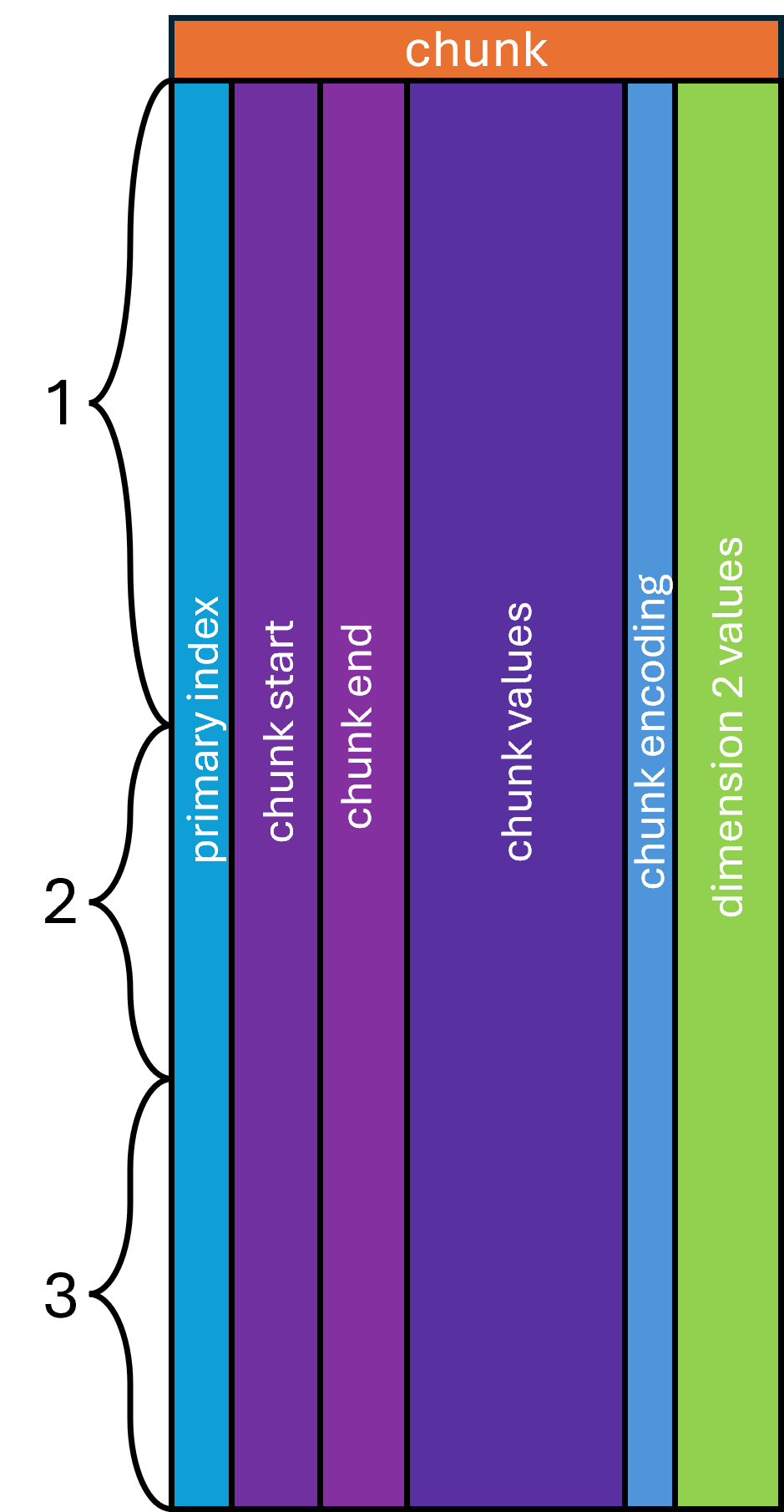

1. <entity_type>_index (integer) — the index key for the entity this chunk belongs to.
2. <array_name>_chunk_start (float64) — the first coordinate value in the chunk, inclusive. Its array-index buffer_format MUST be chunk_start.
3. <array_name>_chunk_end (float64) — the last coordinate value in the chunk, exclusive. Its array-index buffer_format MUST be chunk_end.
4. <array_name>_chunk_values (list) — the encoded coordinates from array_name according to chunk_encoding. Its array-index buffer_format MUST be chunk_values.
5. chunk_encoding (CURIE) — how <array_name>_chunk_values were encoded; see 10.4 Chunk encodings. Its array-index buffer_format MUST be chunk_encoding.

All other columns are expected to be list arrays whose names are simply their array_name (with buffer_format chunk_secondary), or surrogate arrays with buffer_format chunk_transform.

10.2 Parallel time index¶

In addition to the <entity_type>_index column, the writer MAY include a parallel <entity_type>_time column which MUST store the scan start time associated with that entity, stored as a scalar float64. This applies naturally to mass spectra, but is redundant for chromatograms or traces. This column is not part of the array index.

10.3 Splitting data into chunks¶

A chunk table may be partitioned in any pattern, as long as the chunks are non-overlapping and ascending. The chunking procedure must be null-aware — in particular, aware of the null pairs that mark masked regions. The granularity is configurable, trading random-access granularity against compression efficiency.

import pyarrow as pa

def null_chunk_every(data: pa.Array, width: float) -> list[tuple[int, int]]:
    """
    Partition a sorted numerical array into segments spanning `width` units.
    This operation is null-aware, so sparse arrays can be partitioned.
    Returns the (start, end) index of each chunk.
    """
    start = None
    n = len(data)
    i = 0
    # Find the first non-null position
    while i < n:
        v = data[i]
        if v.is_valid:
            start = v.as_py()
            break
        else:
            i += 1

    # If we never found a non-null position, just return a single chunk
    if start is None:
        return [(0, n)]

    chunks = []
    offset = 0
    threshold = start + width
    i = 0
    while i < n:
        v = data[i]
        if v.is_valid:
            v = v.as_py()
            if v > threshold:
                if ((i + 1) < n) and (not data[i + 1].is_valid):
                    while ((i + 1) < n) and (not data[i + 1].is_valid):
                        i += 1
                # Avoid a chunk of length 1, especially a null point; if so,
                # relax the width requirement.
                if i - offset > 1:
                    chunks.append((offset, i))
                    offset = i
                while threshold < v:
                    threshold += width
        # Look ahead: this value is null, but the next is not.
        elif ((i + 1) < n) and (data[i + 1].is_valid):
            i += 1
            v = data[i].as_py()
            if v > threshold:
                i -= 1
                chunks.append((offset, i))
                offset = i
                while threshold < v:
                    threshold += width
        i += 1
    if offset != n:
        chunks.append((offset, n))
    return chunks

10.4 Chunk encodings¶

10.4.1 Basic encoding¶

Chunk-encoding CV term: MS:1000576 — no compression

When storing centroids, or sparse data that are not similarly spaced but still wanting the chunked layout, no special encoding of the chunk values is necessary. Values within each chunk are written as-is to the chunk-values array. This does not improve compressibility, but it keeps a consistent schema for other entries that would benefit from a different encoding.

10.4.2 Delta encoding¶

Chunk-encoding CV term: MS:1003089 — truncation, delta prediction and zlib compression

When data lie on a locally (almost) uniform grid using 64-bit floats, compression improves by computing a delta encoding of the coordinates.

import pyarrow as pa

def null_delta_encode(data: pa.Array) -> pa.Array:
    """
    Delta-encode an Arrow array containing nulls. Nulls are encoded as null
    values and treated as 0.0 for the purpose of computing the next delta.
    """
    acc = []
    it = iter(data)
    # The first entry is the point of reference but not part of the delta
    # sequence unless it is `null`.
    last = next(it)
    if not last.is_valid:
        acc.append(last)

    for item in it:
        if item.is_valid:
            val = item.as_py()
            if last.is_valid:
                acc.append(pa.scalar(val - last.as_py()))
            else:                       # treat the last value as 0.0
                acc.append(item)
            last = item
        else:
            acc.append(item)            # carry the null forward
            last = item
    return pa.array(acc)


def null_delta_decode(data: pa.Array, start: pa.Scalar) -> pa.Array:
    """Decode an Arrow array that was delta-encoded *with* nulls."""
    acc = []
    if not data[0].is_valid:
        if not data[1].is_valid:
            # started at a non-null value immediately followed by a null pair
            acc.append(start)
        start = pa.scalar(None, data.type)
    else:
        acc.append(start.as_py())
    last = start
    for item in data:
        if item.is_valid:
            val = item.as_py()
            if last.is_valid:
                last = pa.scalar(val + last.as_py())
                acc.append(last)
            else:                       # last value assumed zero
                acc.append(item)
                last = item
        else:
            acc.append(item)
            last = item
    return pa.array(acc)

10.4.3 Numpress linear encoding¶

Chunk-encoding CV term: MS:1002312 — MS-Numpress linear prediction compression

This uses the MS-Numpress linear-prediction method (10.1074/mcp.O114.037879) to compress the chunk values as raw bytes. Numpress produces a buffer of an 8-byte fixed point, a 4-byte value 0, a 4-byte value 1, and then 2-byte residuals for all subsequent values. The array is therefore, by definition, not align-able to a 4- or 8-byte type. It also has no concept of nullity, which makes it incompatible with null marking.

To store Numpress-linear-encoded arrays, an extra column <array_name>_numpress_linear_bytes is added alongside the <array_name>_chunk_values column. It is a list of byte arrays (large_list<u8> in Arrow parlance — not large_binary; see the discussion of string-type "optimization"). Its array-index entry MUST have buffer_format chunk_transform and the same array type, array name, data type, unit, and data-processing ID as the _chunk_values column. The transform field MUST be MS:1002312.

10.4.4 Grid encoding¶

Chunk-encoding CV term: MS:1003826 — coordinate grid encoding

This uses a pluggable coordinate model that maps real value to and from unsigned integer coordinates using a pair of equations and a set of grid parameters. To store grid-encoded arrays for the chunk dimension, an extra column group <array_name>_grid is added. Like in the 10.4.3 Numpress linear encoding case, the <array_name>_chunk_values column is populated with an empty list when the chunked dimension is grid-encoded. The array index entry for <array_name>_grid column MUST have buffer_format chunk_transform and the same array type, array name, data type, unit, and data-processing ID as the _chunk_values column, and the transform field MUST be MS:1003826. The grid encoding is incompatible with null marking as to avoid the complication of stacking encodings. A parallel intensity array may still be null marked. Other arrays may be grid encoded using the same methods described here, such as an IM-MS spectrum's ion mobility array, if desirable. In this case the array index entry should either define the data type, unit and array type for the column, or copy from another column defining the same array type. Only one distinction is made in the encoding of the grid indices, seen later in this section. When a grid model is used, it is encoded as a group/struct with the schema:

optional group <array_name>_grid {
    required binary grid_type (String);
    required group parameters (List) {
        repeated group list {
            required double item;
        }
    }
    required group indices (List) {
        repeated group list {
            required int32 item (Int(bitWidth=32, isSigned=false));
        }
    }
}

The grid_type column in the group is a string that contains the CV term CURIE for the model type deriving from MS:1003822|grid coordinate interpolation, telling the reader how to use the other columns. Currently, there are two "open" grid model types, MS:1003824|linear grid interpolation which uses a scaled simple least squares model and MS:1003825|square root grid interpolation which does the same, but using the square root of real coordinates. The latter is a better theoretical fit for time-of-flight mass analyzers, though it often lacks essential parameters from the hardware to be as accurate as vendor proprietary models. There are provisions for adding vendor models or approximations of them to the vocabulary.

The parameters column is a list of 64-bit floats that will be used to parameterize the grid model. The order they are written is given by grid_type's definition. The number of parameters MAY vary within rows of the same grid_type if the model permits it, and is expected to vary between different grid_type models in general. These parameters are used in index/coordinate conversion.

The indices column is a list of 32-bit (unsigned) integers that are mapped to the real 64-bit float coordinates being encoded. These are produced for writing by using the grid model to convert real-valued coordinates to grid indices. When reading, the grid model is used to convert from indices back to their equivalent real-valued coordinates. It is possible that for some proprietary grids, only the from index conversion is publicly available, or an approximation thereof. Whether the grid encodes the chunk dimension or not, the starting grid index MUST be included in the indices column's array. The chunk dimension's indices column MUST be delta-encoded, this is done to improve compressibility of a sorted array of indices.

It must be noted that unless using a vendor-defined encoding, this is likely to be a lossy transformation. The user SHOULD be able to set an error threshold for using the grid encodings. A model that would have errors exceeding the given threshold SHOULD fall back to use a different encoding. The linear grid can be an order of magnitude less accurate than MS-Numpress linear prediction on profile data, but 30% smaller when both are Zstandard compressed. On time-of-flight mass analyzers, the square root grid is marginally less accurate but often produces better compression, 50% smaller than MS-Numpress linear prediction on the same profile data. This is because its grid indices are more consistently spaced relative to the real data. Additionally, on quantities with compressed dynamic ranges like ion mobility, the linear grid is equal to or more accurate than MS-Numpress linear prediction while still being smaller.

10.4.4.1 Parquet column encoding for grid encoding columns¶

• The grid_type column should be encoded using RLE_DICTIONARY, the default behavior
• The parameters column's bit-level will vary from model to model, RLE_DICTIONARY is usually best still.
• The indices column, benefits from BYTE_STREAM_SPLIT most of the time, at least for the sorted dimension. However, when one index in particular dominates the result, such as when delta encoding profile data with consistent spacing or repeated values, RLE_DICTIONARY may still outperform it be a large margin.

TODO: Collect a larger corpus of data to plot this accuracy claim.

class LinearGrid:
    intercept: float
    slope: float
    scale: float

    def from_index(
        self, index: int | npt.NDArray[np.uint32]
    ) -> float | npt.NDArray[np.float64]:
        value = (self.intercept + index * self.slope) / self.scale
        if isinstance(value, np.ndarray):
            return value.astype(np.float64)
        return value

    def to_index(
        self, value: float | npt.NDArray[np.float64]
    ) -> int | npt.NDArray[np.uint32]:
        value = (value * self.scale - self.intercept) / self.slope
        if isinstance(value, np.ndarray):
            return (value + 0.5).astype(np.uint32)
        return int(value + 0.5)

def fit(values: npt.NDArray[np.float64], low: float, high: float, scale: float = 1.0):
    # The maximum value a 32-bit unsigned integer can take on
    slots = 4294967295
    # The spacing between points on a grid from *low* to *high* with the *scale* multiplier
    # is given by the total distance between those two scaled points divided by the total
    # number of positions along a grid storable in a 32-bit integer.
    step_size = (high * scale - low * scale) / slots

    values = values * scale
    # The initial grid indices for these observed values
    indices = ((values - (low * scale)) / step_size).astype(np.uint32)

    x_mean = indices.mean()
    y_mean = values.mean()
    # Regress values on the initial indices
    x_sub_mean = indices - x_mean
    y_sub_mean = values - y_mean

    slope = x_sub_mean.dot(y_sub_mean) / x_sub_mean.dot(x_sub_mean)
    intercept = y_mean - slope * x_mean
    return np.array([intercept, slope, scale])

10.5 Opaque array transforms for other dimensions¶

Sometimes we prefer to store data in arrays other than the main axis loss-ily in non-uniform, unaligned, or otherwise non-standard types that have no physical representation in Parquet. MS-Numpress's short logged float (SLOF) and positive-integer encodings are good examples. While Numpress-linear handles the coordinate dimension, opaque transforms can also encode the secondary arrays in chunks. These columns are recorded in the array index with buffer_format chunk_transform, and the transform field is the CURIE for the relevant method — for example MS:1002314 for MS-Numpress SLOF. The column's physical type MUST be a list of byte arrays, though the type in the array index MUST be the decoded array's real type. Column names SHOULD be of the form <array_name>_<transform_name>_bytes, e.g. intensity_numpress_slof_bytes.

10.5.1 Opaque transforms and the array index¶

When writing a file with an opaque transform on a column, the writer MUST ensure that the necessary additional column to store the transformed value is present in the schema. If the writer expects the untransformed column to be present as well, this column SHOULD be present, and it MUST the <array_name>_chunk_values column must always be present in the schema. There MUST be an array index entry for each column. The transformed array index entry MUST set the appropriate CURIE in the .transform field, and the untransformed array entry is left null. Non-opaque transforms like null marking do not require this extra step.

10.6 Encoding Strategies Quick Reference¶

10.7 Decoding Strategies Quick Reference¶

10.8 Reading a single entry from the chunked layout¶

To read a single entry (spectrum, chromatogram, …) stored in chunks:

1. Identify which columns are annotated as chunk_start, chunk_end, chunk_encoding, and chunk_values in the array index. The <entity_type>_index column MUST be the first column in the table, so it always has index 0.
2. Find the row group containing the entry's index value via the row-group metadata. Optionally, if the page index is available, find the row ranges of the pages that contain that index.
3. Read the selected row group (or page row range) and filter to rows whose <entity_type>_index equals the entry's index.
4. Process each selected row, decoding its chunk_values according to chunk_encoding and any transform in the array index.
5. Unpack the chunk_secondary columns and apply any transforms, accumulating each column's arrays across rows. Some transforms require additional information from the entity's metadata table.
6. If the entry has additional auxiliary arrays, read and decode them from the metadata table.
